TDA24Z
Eshion
EMF24Z

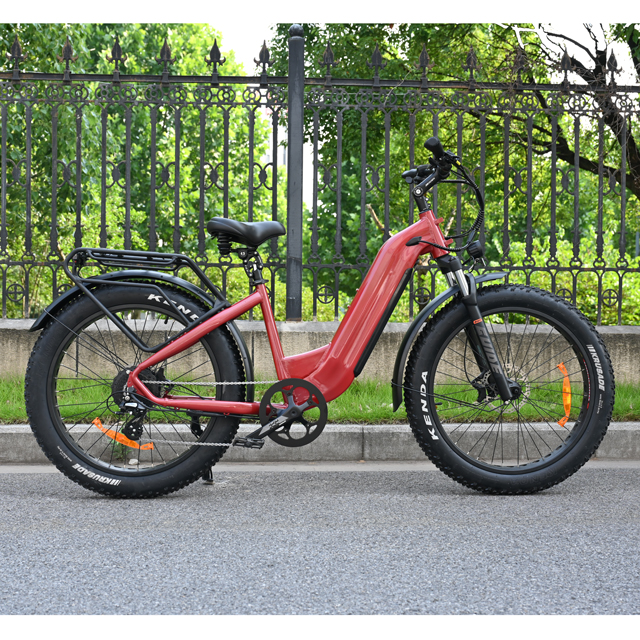

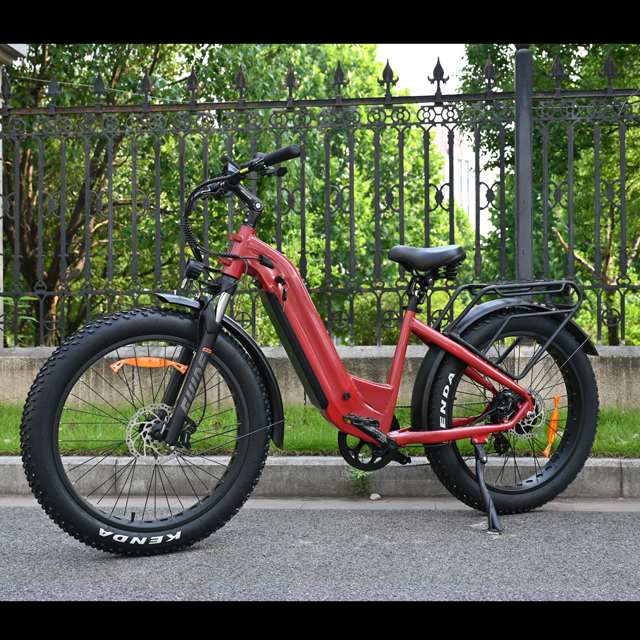

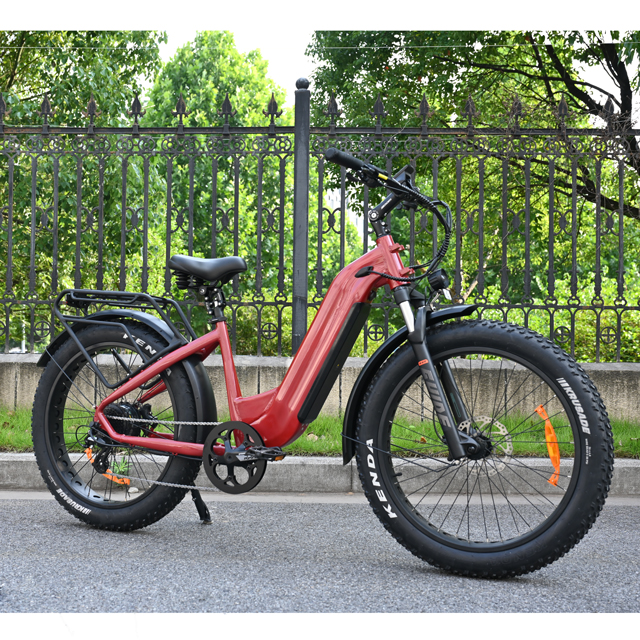

The Step Through Design Electric Fat Tire Bike 26" (Model: TDA24Z) by Eshion is a versatile electric bicycle engineered for both practical commuting and off-road exploration. Equipped with a 48V 500W rear hub motor and compatible with single or dual 48V 20Ah SAMSUNG battery cells, this bike balances power and efficiency to meet diverse riding needs. Its step-through frame design enhances accessibility, while the 26-inch Kenda 4.0 fat tires provide stability across varied terrains.
Available in multiple colors (Red, Black, Blue, Orange, Gray, and custom options for orders over 20 units) with matt or shiny coating, the TDA24Z combines functional design with customizable aesthetics. Priced starting at $1,590.00 for bulk orders (≥100 units), it caters to both individual and wholesale buyers, with a minimum order quantity of 20 units.
Motor: A 48V 500W rear hub motor delivers consistent torque, suitable for steady acceleration on flat roads and moderate climbs.
Battery: Equipped with 48V 20Ah SAMSUNG battery cells (single or dual configuration). For larger capacity needs, contact the supplier for customization.
Range: Dependent on terrain and usage, the battery supports extended rides, with dual batteries extending runtime for longer journeys.
Tires: Kenda 26*4.0 fat tires offer enhanced traction and shock absorption, making them ideal for gravel, snow, or uneven trails.
Frame & Suspension: Features a step-through aluminum frame for easy mounting/dismounting. The hydraulic suspension fork (80mm travel) and SR-suntour hydraulic suspension seat post reduce vibrations, improving ride comfort.
Braking System: Tektro HD-E350 hydraulic disc brakes with power cut-off function ensure reliable stopping power in wet or dry conditions.
Component | Specification |
Transmission | Shimano Tourney 7-speed system (thumb shifter + rear derailleur + cassette) |
Display | LCD display showing speed, range, time, and assist level |

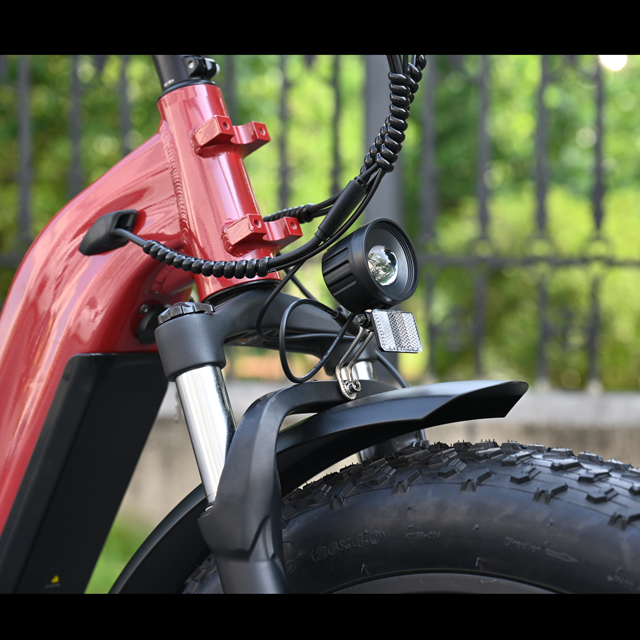

Head Light | LED headlight with high lumen output and reflector for low-light visibility |

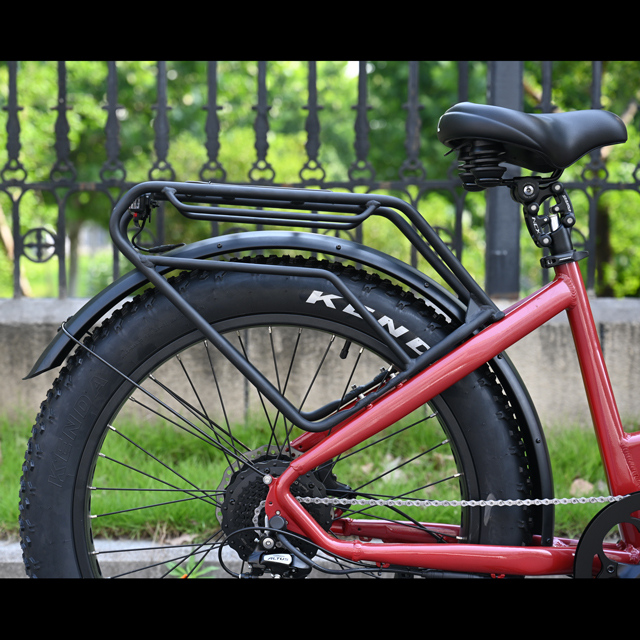

Rear Rack | Aluminum alloy rear rack (max load: 25kgs) for carrying luggage |
Color Options | Red, Black, Blue, Orange, Gray, Customized (>20 units) |
The step-through structure eliminates the need to lift a leg high, making it user-friendly for riders of all ages. The frame's sporty yet rugged aesthetic—paired with color-coordinated components—balances functionality with visual appeal.
With its compact design and 7-speed transmission, the TDA24Z navigates city traffic smoothly. The LED headlight and reflector ensure visibility during early morning or evening rides, while the rear rack accommodates daily essentials like backpacks or groceries.
The 26*4.0 fat tires and hydraulic suspension fork excel on gravel paths, muddy trails, or light snow. The 500W motor provides enough power to tackle gentle inclines, making it suitable for weekend adventures in parks.
With a minimum order of 20 units, it’s ideal for rental services, corporate fleets, or community shared-bike programs. Bulk pricing ($1,740.00 for 20-49 units, $1,640.00 for 50-99 units, and $1,590.00 for ≥100 units) offers cost efficiency for large-scale purchases.
Q1: What is the price range for the TDA24Z?
A: Retail prices start at $1,690.00, with wholesale pricing available for bulk orders: $1,740.00 (20-49 units), $1,640.00 (50-99 units), and $1,590.00 (≥100 units). Sign in to view detailed wholesale rates.
Q2: Can I customize the bike’s color?
A: Yes, custom colors are available for orders of 20 units or more. Standard options include Red, Black, Blue, Orange, and Gray, with matt or shiny coating.
Q3: What is the minimum order quantity?
A: The minimum order quantity is 20 units.
Q4: What is included in the bike’s standard configuration?
A: Standard components include a 48V 500W rear hub motor, 48V 20Ah SAMSUNG battery, Kenda 26*4.0 tires, Tektro hydraulic disc brakes, Shimano 7-speed transmission, LCD display, LED headlight, and aluminum rear rack.
Q5: How does the dual battery option work?
A: The dual battery configuration extends runtime by doubling the energy storage (compared to a single battery). Contact the supplier for details on compatibility and installation.
The TDA24Z electric fat tire bike combines practicality with performance, making it a reliable choice for riders seeking a versatile e-bike for daily use or outdoor activities. Its durable build and customizable options cater to both individual and commercial needs, backed by Eshion’s expertise as a professional electric bike manufacturer.
